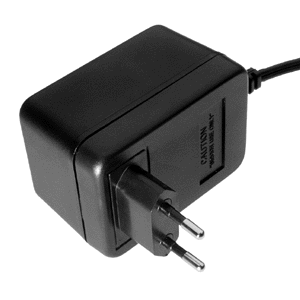

Power Supply PS-1208 EU
Pdf Datasheet
Pdf Manual
PS-1208 is a stand-alone wall type plug-in power supply
that may be used to power one or two fiber optic transmission
units Please contact us for other countries.
| AC Input |
220 VAC 50 Hz |
| AC Input Connector |
US Wall Plug |
| DC Output Current |
800 milliamperes |
| DC Output Voltage |
12 V +/- 5% at 800mA load |
| Cord Length |
6 feet |
| Indicator Lights |
None |
| Operating Temperature |
-35 to +75C
|
| Physical Size |
3.07" (78.0) L x 1.91"(48.5) W x 1.33"
(33.8)D |
Note. The PS-1208 is made in China. For a USA made power supply
see the PS-1210
|
